更多>>Murata Manufacturing Co., Ltd.
來源：http://www.wftv100.com 作者：KANGHUAER 2023年08月10

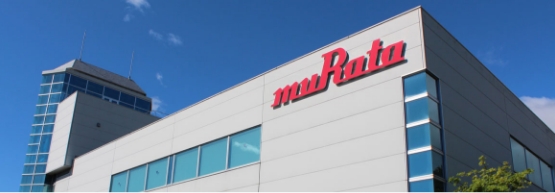

Murata Manufacturing Co., Ltd.始于1944年10月，由村田昭（1921-2006）在京都市中京區創立了個人經營的村田制作所。發展至今，已成為一家使用性能優異電子原料，設計、制造最先進的陶瓷晶振，陶瓷晶體諧振器，陶瓷濾波器電子元器件及多功能高密度模塊的企業。在手機、家電，汽車相關的應用、能源管理系統、醫療保健器材等，都有村田陶瓷晶振公司的身影。
.jpg)

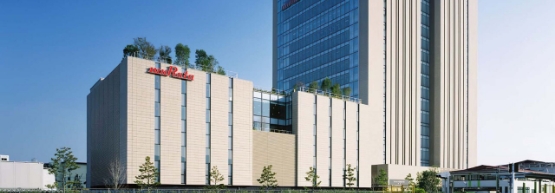

村田陶瓷晶振自1973年在中國香港成立第一家銷售公司起，至今村田晶振在中國已擁有19個銷售據點、4個工廠以及4個研發設計基地，近距離為客戶提供及時有效的服務和技術支持。村田晶振公司在中國以滿足客戶的要求作為企業經營的最優先課題，全體員工同心協力完成工作。
.jpg)
1944年，在京都市中京區設立村田制作所
1944年，在京都市中京區設立村田制作所
1952年，將總公司及工廠遷移到京都市東山區山科
1955年，作為大宮技研將研究部門設置于創業之地。此后，遷移到長岡京市，并改稱村田技研
1962年，昭和天皇、皇后兩陛下視察株式會社福井村田制作所。此時制作的花卉鐘如今仍在株式會社福井村田制作所
1973年，在美國喬治亞州設立生產子公司Murata Manufacturing Co., Inc.，推進經營的國際化
1983年，設立株式會社出云村田制作所，強化國內生產體制
1987年，在滋賀縣野洲市開設野洲事業所；1988年在神奈川縣橫濱市綠區開設橫濱開發中心，強化研究開發體制
1988年，在泰國設立生產、銷售公司Murata Electronics (Thailand), Lyd.，擴大全球性生產銷售體制
1994年，在中國江蘇省無錫市設立了生產和銷售公司“無錫村田電子有限公司”
2005年，在日本電子高新科技博覽會上(CEATEC JAPAN 2005)，進行了MURATA BOY(村田頑童)的公開示，贏得了國內外的廣泛好評
2014年 村田制作所啦啦隊的開發
2017年 電池事業擴大、強化
2020s，5G時代到來，向汽車電子化發展，對于不斷升級的電子設備的多功能化，以及隨之而來的社會發展，村田將持續貢獻自己的力量
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 等效串聯電阻( ) | 負載電容量 | 工作溫度 |
| XRCED16M400FXQ52R0 | MCR1210 | 16.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED17M400FXQ52R0 | MCR1210 | 17.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED18M400FXQ52R0 | MCR1210 | 18.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED19M400FXQ52R0 | MCR1210 | 19.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED20M400FXQ52R0 | MCR1210 | 20.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED21M400FXQ52R0 | MCR1210 | 21.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED22M400FXQ52R0 | MCR1210 | 22.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED23M400FXQ52R0 | MCR1210 | 23.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED24M400FXQ52R0 | MCR1210 | 24.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED25M400FXQ52R0 | MCR1210 | 25.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED26M400FXQ52R0 | MCR1210 | 26.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED27M400FXQ52R0 | MCR1210 | 27.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED28M400FXQ52R0 | MCR1210 | 28.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED29M400FXQ52R0 | MCR1210 | 29.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED30M400FXQ52R0 | MCR1210 | 30.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED31M400FXQ52R0 | MCR1210 | 31.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED32M400FXQ52R0 | MCR1210 | 32.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED33M400FXQ52R0 | MCR1210 | 33.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED34M400FXQ52R0 | MCR1210 | 34.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED35M400FXQ52R0 | MCR1210 | 35.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED36M400FXQ52R0 | MCR1210 | 36.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED37M400FXQ52R0 | MCR1210 | 37.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED38M400FXQ52R0 | MCR1210 | 38.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED39M400FXQ52R0 | MCR1210 | 39.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED40M400FXQ52R0 | MCR1210 | 40.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED41M400FXQ52R0 | MCR1210 | 41.0000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCED37M400FXQ52R0 | MCR1210 | 37.4000MHz | ±20ppm (Total) | 60Ω | 6pF | -30℃ to 85℃ |
| XRCFD12M000FYQ01R0 | MCR1612 | 12.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD13M000FYQ01R0 | MCR1612 | 13.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD14M000FYQ01R0 | MCR1612 | 14.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD15M000FYQ01R0 | MCR1612 | 15.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD16M000FYQ01R0 | MCR1612 | 16.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD17M000FYQ01R0 | MCR1612 | 17.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD18M000FYQ01R0 | MCR1612 | 18.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD19M000FYQ01R0 | MCR1612 | 19.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD20M000FYQ01R0 | MCR1612 | 20.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD21M000FYQ01R0 | MCR1612 | 21.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD22M000FYQ01R0 | MCR1612 | 22.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD23M000FYQ01R0 | MCR1612 | 23.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD24M000FYQ01R0 | MCR1612 | 24.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD25M000FYQ01R0 | MCR1612 | 25.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD26M000FYQ01R0 | MCR1612 | 26.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD27M000FYQ01R0 | MCR1612 | 27.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD28M000FYQ01R0 | MCR1612 | 28.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD29M000FYQ01R0 | MCR1612 | 29.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD30M000FYQ01R0 | MCR1612 | 30.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD31M000FYQ01R0 | MCR1612 | 31.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD32M000FYQ01R0 | MCR1612 | 32.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD33M000FYQ01R0 | MCR1612 | 33.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD34M000FYQ01R0 | MCR1612 | 34.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD35M000FYQ01R0 | MCR1612 | 35.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD36M000FYQ01R0 | MCR1612 | 36.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD37M000FYQ01R0 | MCR1612 | 37.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD38M000FYQ01R0 | MCR1612 | 38.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD39M000FYQ01R0 | MCR1612 | 39.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD40M000FYQ01R0 | MCR1612 | 40.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD41M000FYQ01R0 | MCR1612 | 41.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCFD42M000FYQ01R0 | MCR1612 | 42.0000MHz | ±20ppm max. (Total) | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB24M000F0G00R0 | HCR2016 | 24.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB24M000F0L00R0 | HCR2016 | 24.0000MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M000F0Z00R0 | HCR2016 | 24.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 105℃ |
| XRCGB24M000F1H00R0 | HCR2016 | 24.0000MHz | ±10ppm | 80Ω | 6pF | -20℃ to 70℃ |
| XRCGB24M000F1H01R0 | HCR2016 | 24.0000MHz | ±10ppm | 80Ω | 8pF | -20℃ to 70℃ |
| XRCGB24M000F1H02R0 | HCR2016 | 24.0000MHz | ±10ppm | 80Ω | 10pF | -20℃ to 70℃ |
| XRCGB24M000F1H03R0 | HCR2016 | 24.0000MHz | ±10ppm | 80Ω | 12pF | -20℃ to 70℃ |
| XRCGB24M000F2P00R0 | HCR2016 | 24.0000MHz | ±20ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M000F2P01R0 | HCR2016 | 24.0000MHz | ±20ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB24M000F2P02R0 | HCR2016 | 24.0000MHz | ±20ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB24M000F3A00R0 | HCR2016 | 24.0000MHz | ±30ppm | 120Ω | 6pF | -40℃ to 125℃ |
| XRCGB24M000F3G00R0 | HCR2016 | 24.0000MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB24M000F3M00R0 | HCR2016 | 24.0000MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M000F3M01R0 | HCR2016 | 24.0000MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB24M000F3M02R0 | HCR2016 | 24.0000MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB24M000F3M13R0 | HCR2016 | 24.0000MHz | ±30ppm | 120Ω | 8.5pF | -30℃ to 85℃ |
| XRCGB24M000F3M19R0 | HCR2016 | 24.0000MHz | ±30ppm | 100Ω | 6pF | -40℃ to 85℃ |
| XRCGB24M000F3N00R0 | HCR2016 | 24.0000MHz | ±30ppm | 150Ω | 6pF | -20℃ to 85℃ |
| XRCGB24M000FAN00R0 | HCR2016 | 24.0000MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB24M000FBP12R0 | HCR2016 | 24.0000MHz | ±15ppm | 80Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M576F0G00R0 | HCR2016 | 24.5760MHz | ±100ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB24M576F0L00R0 | HCR2016 | 24.5760MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M576F0Z00R0 | HCR2016 | 24.5760MHz | ±100ppm | 150Ω | 6pF | -40℃ to 100℃ |
| XRCGB24M576F3G00R0 | HCR2016 | 24.5760MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB24M576F3M00R0 | HCR2016 | 24.5760MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M576F3M01R0 | HCR2016 | 24.5760MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB24M576F3M02R0 | HCR2016 | 24.5760MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB24M576F3N00R0 | HCR2016 | 24.5760MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB24M576FAN00R0 | HCR2016 | 24.5760MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB25M000F0G00R0 | HCR2016 | 25.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB25M000F0L00R0 | HCR2016 | 25.0000MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB25M000F0Z00R0 | HCR2016 | 25.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 105℃ |
| XRCGB25M000F1H00R0 | HCR2016 | 25.0000MHz | ±10ppm | 80Ω | 6pF | -20℃ to 70℃ |
| XRCGB25M000F1H01R0 | HCR2016 | 25.0000MHz | ±10ppm | 80Ω | 8pF | -20℃ to 70℃ |
| XRCGB25M000F1H02R0 | HCR2016 | 25.0000MHz | ±10ppm | 80Ω | 10pF | -20℃ to 70℃ |
| XRCGB25M000F1H03R0 | HCR2016 | 25.0000MHz | ±10ppm | 80Ω | 12pF | -20℃ to 70℃ |
| XRCGB25M000F2P00R0 | HCR2016 | 25.0000MHz | ±20ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB25M000F2P01R0 | HCR2016 | 25.0000MHz | ±20ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB25M000F2P02R0 | HCR2016 | 25.0000MHz | ±20ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB25M000F3A00R0 | HCR2016 | 25.0000MHz | ±30ppm | 100Ω | 6pF | -40℃ to 125℃ |
| XRCGB25M000F3G00R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB25M000F3M00R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB25M000F3M01R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB25M000F3M02R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB25M000F3M04R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 4.5pF | -30℃ to 85℃ |
| XRCGB25M000F3M18R0 | HCR2016 | 25.0000MHz | ±30ppm | 80Ω | 12pF | -30℃ to 85℃ |
| XRCGB25M000F3N00R0 | HCR2016 | 25.0000MHz | ±30ppm | 150Ω | 6pF | -20℃ to 85℃ |
| XRCGB25M000FAN00R0 | HCR2016 | 25.0000MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB25M000FAN12R0 | HCR2016 | 25.0000MHz | ±25ppm | 80Ω | 8pF | -30℃ to 85℃ |
| XRCGB26M000F0G00R0 | HCR2016 | 26.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB26M000F0L00R0 | HCR2016 | 26.0000MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB26M000F0Z00R0 | HCR2016 | 26.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 105℃ |
| XRCGB26M000F1H00R0 | HCR2016 | 26.0000MHz | ±10ppm | 60Ω | 6pF | -30℃ to 85℃ |
| XRCGB26M000F1H01R0 | HCR2016 | 26.0000MHz | ±10ppm | 60Ω | 8pF | -30℃ to 85℃ |
| XRCGB26M000F1H02R0 | HCR2016 | 26.0000MHz | ±10ppm | 60Ω | 10pF | -30℃ to 85℃ |
| XRCGB26M000F1H03R0 | HCR2016 | 26.0000MHz | ±10ppm | 60Ω | 12pF | -30℃ to 85℃ |
| XRCGB26M000F2P00R0 | HCR2016 | 26.0000MHz | ±20ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB26M000F2P01R0 | HCR2016 | 26.0000MHz | ±20ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB26M000F2P02R0 | HCR2016 | 26.0000MHz | ±20ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB26M000F3A00R0 | HCR2016 | 26.0000MHz | ±30ppm | 80Ω | 6pF | -40℃ to 125℃ |
| XRCGB26M000F3G00R0 | HCR2016 | 26.0000MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB26M000F3M00R0 | HCR2016 | 26.0000MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB26M000F3M01R0 | HCR2016 | 26.0000MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB26M000F3M02R0 | HCR2016 | 26.0000MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB26M000F3N00R0 | HCR2016 | 26.0000MHz | ±30ppm | 150Ω | 6pF | -20℃ to 85℃ |
| XRCGB26M000FAN00R0 | HCR2016 | 26.0000MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB27M000F0G00R0 | HCR2016 | 27.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB27M000F0L00R0 | HCR2016 | 27.0000MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M000F0Z00R0 | HCR2016 | 27.0000MHz | ±100ppm | 150Ω | 6pF | -40℃ to 105℃ |
| XRCGB27M000F2P00R0 | HCR2016 | 27.0000MHz | ±20ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M000F2P01R0 | HCR2016 | 27.0000MHz | ±20ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB27M000F2P02R0 | HCR2016 | 27.0000MHz | ±20ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M000F3A00R0 | HCR2016 | 27.0000MHz | ±30ppm | 80Ω | 6pF | -40℃ to 125℃ |
| XRCGB27M000F3G00R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB27M000F3M00R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M000F3M01R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB27M000F3M02R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M000F3M14R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M000F3N00R0 | HCR2016 | 27.0000MHz | ±30ppm | 150Ω | 6pF | -20℃ to 85℃ |
| XRCGB27M000FAN00R0 | HCR2016 | 27.0000MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB27M000FAN16R0 | HCR2016 | 27.0000MHz | ±25ppm | 90Ω | 12pF | -10℃ to 70℃ |
| XRCGB27M120F0L00R0 | HCR2016 | 27.1200MHz | ±100ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M120F0Z00R0 | HCR2016 | 27.1200MHz | ±100ppm | 150Ω | 6pF | -40℃ to 105℃ |
| XRCGB27M120F2P00R0 | HCR2016 | 27.1200MHz | ±20ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M120F2P01R0 | HCR2016 | 27.1200MHz | ±20ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB27M120F2P02R0 | HCR2016 | 27.1200MHz | ±20ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M120F2P10R0 | HCR2016 | 27.1200MHz | ±20ppm | 80Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M120F3A00R0 | HCR2016 | 27.1200MHz | ±30ppm | 80Ω | 6pF | -40℃ to 125℃ |
| XRCGB27M120F3G00R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 6pF | -40℃ to 85℃ |
| XRCGB27M120F3M00R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M120F3M01R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 8pF | -30℃ to 85℃ |
| XRCGB27M120F3M02R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M120F3M10R0 | HCR2016 | 27.1200MHz | ±30ppm | 80Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M120F3M13R0 | HCR2016 | 27.1200MHz | ±30ppm | 60Ω | 10pF | -30℃ to 85℃ |
| XRCGB27M120F3N00R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 6pF | -20℃ to 85℃ |
| XRCGB27M120F3P00R0 | HCR2016 | 27.1200MHz | ±30ppm | 150Ω | 6pF | -30℃ to 85℃ |
| XRCGB27M120FAN00R0 | HCR2016 | 27.1200MHz | ±25ppm | 150Ω | 6pF | -10℃ to 70℃ |
| XRCGB30M000F0G00R0 | HCR2016 | 30.0000MHz | ±100ppm | 100Ω | 6pF | -40℃ to 85℃ |
| XRCGB30M000F0L00R0 | HCR2016 | 30.0000MHz | ±100ppm | 100Ω | 6pF | -30℃ to 85℃ |
正在載入評論數據...
相關資訊
- [2024-05-31]Bliley三種類型的恒溫晶振BOVTE-50MDB-...
- [2024-05-24]Bliley用于雷達和通信系統的BVCT4-26.0...
- [2024-05-23]康納溫菲爾德補償模塊FT9-CC-2BAP提供兩...
- [2024-05-21]Euroquartz超低電流微型振蕩器CXOU3ST-...
- [2024-04-23]Raltron實時時鐘模塊RTT21064具有低功耗...
- [2024-04-22]Wi2Wi推出新的VO5系列LC VCO產品VC0525...
- [2024-04-18]FMI超低功耗HLP536-32K768晶體振蕩器
- [2024-04-16]QVS溫補晶振QCT10-FT3-20.000MHz產品提...
- [2024-04-15]CTS濾波器CER0004A解決方案
- [2024-03-04]FUJI關于可編程TCXO與標準TCXO的分析與...
- [2024-03-04]石英晶振產品的技術領導者NEL晶振
- [2024-03-02]日本富士晶振簡介及其發展史
銷售代表
售后服務
