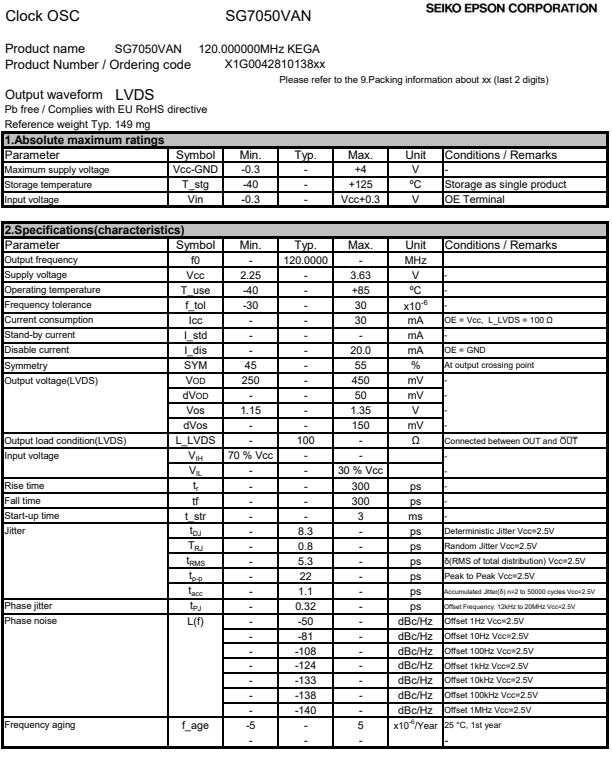

愛普生公司是一家在晶體行業深耕幾十年的知名制造商，通過自身不斷的成長，敢于突破自我的精神，在創新型的有源晶振上，取得了不錯的成就，同時也吸引更多的用戶與之建立起親密的合作關系，愛普生公司悠久的發展歷程中，離不開其對于產品的極致完美，更離不開員工們付出與努力，使得愛普生能夠為社會創造巨大的價值，在環保事業上貢獻自己的一份力量。與此同時開發了SG7050VAN晶振，編碼X1G004281013800，頻率120.000000兆赫，輸出WaveLVDS，供電電壓2.25至3.63 V，尺寸(長×寬×高)7.00 × 5.00 × 1.60毫米，工作溫度-40到+85°C，頻率公差±30ppm，OSC TypeClock OSC差分石英晶振，智能家居應用低損耗晶振，通過綠色無鉛環保認證，智能家居應用專用低損耗有源晶振X1G004281013800。

智能家居應用專用低損耗有源晶振X1G004281013800，石英晶體振蕩器分非溫度補償式晶體振蕩器、溫度補償晶體振蕩器(TCXO)、電壓控制晶體振蕩器(VCXO)、恒溫控制式晶體振蕩器(OCXO)和數字化/μp補償式晶體振蕩器(DCXO/MCXO)等幾種類型。其中，無溫度補償式晶體振蕩器是最簡單的一種，在日本工業標準(JIS)中 ，稱其為標準封裝晶體振蕩器(SPXO)。

Product Number	愛普生晶振型號	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G004281010800	SG7050VAN	644.531000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281011300	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281011700	SG7050VAN	125.003125 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281011800	SG7050VAN	175.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281011900	SG7050VAN	125.003750 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281012400	SG7050VAN	122.880000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281012500	SG7050VAN	122.880000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281012600	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281012800	SG7050VAN	622.080000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281013000	SG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281013100	SG7050VAN	296.703000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281013300	SG7050VAN	148.351648 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281013400	SG7050VAN	300.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281013700	SG7050VAN	133.330000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281013800	SG7050VAN	120.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281013900	SG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281014000	SG7050VAN	296.703000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
Product Number00	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1M000431000400	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M000431000600	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
