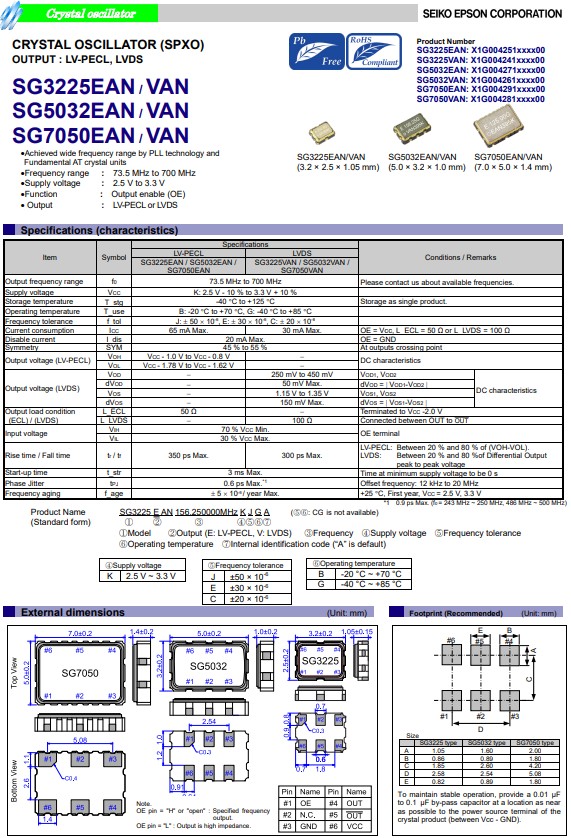

愛普生晶振SG3225VAN的電源電壓為2.5V至3.3V，輸出頻率73.5MHz至700MHz，結合低抖動PLL技術和內置AT晶體單元，可產生穩定的輸出信號；頻率偏移誤差*低±20ppm，*大相位抖動不超過0.6ps，SG3225VAN石英晶體振蕩器非常適合對時鐘信號完整性有嚴格要求的系統。考慮元件老化的影響，其頻率老化率僅為±5ppm/年，大大提高了元件的使用壽命。SG3225VAN支持LVDS標準差分信號，增強了輸出信號的抗干擾能力，可作為標準模塊在電路中直接應用。
近年來，對小型化、多功能網絡設備的需求不斷增加，SG3225VAN差分晶振以低功耗，低抖動，小型化，高穩定性等優點，在手持?jǐn)y帶設備、可穿戴式設備以及物聯網等網絡設備中具有廣闊的市場前景，可有效延長設備使用壽命、縮短產品開發周期。目前市場主流差分晶振都是6腳貼片晶振封裝，頻率比普通晶振相比較高，常用的頻率有:SG3225VAN,74.25MHz,100MHz,125MHz,148.5MHz,150MHz,200MHz等。適用于10GbE、40GbE、100GbE超寬頻以太網絡，醫療、測試測量、消費電子、工業自動化等領域。
用于手持?jǐn)y帶設備晶振SG3225VAN編碼X1G004241000500,X1G004241003100,差分晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004241000100	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000400	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000500	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000600	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000800	SG3225VAN	212.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001000	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001200	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001400	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002000	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002300	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002400	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002500	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002600	SG3225VAN	106.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002800	SG3225VAN	74.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002900	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003100	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003200	SG3225VAN	155.520000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003300	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003400	SG3225VAN	312.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003900	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241004200	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241005200	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006100	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006200	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C

X1G004241006500	SG3225VAN	212.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006900	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241007100	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241010000	SG3225VAN	133.333333MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241010300	SG3225VAN	250.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010500	SG3225VAN	80.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010800	SG3225VAN	297.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010900	SG3225VAN	133.330000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241011300	SG3225VAN	125.003125MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241011700	SG3225VAN	126.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012000	SG3225VAN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012300	SG3225VAN	90.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241012400	SG3225VAN	135.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012500	SG3225VAN	76.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012600	SG3225VAN	360.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012700	SG3225VAN	644.531250MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241012900	SG3225VAN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241013000	SG3225VAN	115.200000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241013100	SG3225VAN	600.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241013500	SG3225VAN	240.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241013600	SG3225VAN	133.333000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241013700	SG3225VAN	133.262000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241013800	SG3225VAN	148.351600MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241014100	SG3225VAN	300.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241014200	SG3225VAN	90.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C

用于手持?jǐn)y帶設備晶振SG3225VAN編碼X1G004241000500,X1G004241003100,差分晶振
差分晶振中熱門的型號是SG7050VAN，但是隨著工業化的發展，小型化是未來的趨勢。型號SG3225VAN就是愛普生為時鐘設計新推出的SPXO晶振系列，具有小體積輕薄型，低功耗，低抖動，支持LVDS輸出差分晶振，并且通過OE引腳可實現輸出功能。在正常工作狀態下，電流損耗低至30mA，而*大啟動時間僅為3ms，保證了低功耗設計對設備喚醒速度的要求。當輸出端口OE接地時，關閉電流*大20mA，使其更容易實現低功耗設計。SG3225VAN有源晶振的工作溫度為-40℃至85℃，符合工業級產品標準。小體積尺寸為3.2x2.5x1.20mm六腳貼片晶振，小型化封裝有利于提高系統設計的靈活性。
