首頁進口晶振京瓷晶振CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ

編號：12957690
頻率：24.576MHZ
尺寸：3.2*2.5mm

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ，尺寸3225mm,頻率為24.576MHZ，工作溫度為-40C~+85C，日本京瓷晶振，Kyocera晶振，進口貼片晶振，無源諧振器，貼片晶振，陶瓷晶振，陶瓷諧振器，小體積晶振...

分享到

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ，尺寸3225mm,頻率為24.576MHZ，工作溫度為-40°C~+85°C，日本京瓷晶振，Kyocera晶振，進口貼片晶振，無源諧振器，貼片晶振，陶瓷晶振，陶瓷諧振器，小體積晶振，高質量晶振，低損耗晶振，數碼家電專用晶振，普通民用設備晶振，CX3225GB24000P0HPQCC貼片晶振，CX3225GB25000D0HEQCC進口晶振.
貼片無源晶體產品主要應用范圍：數碼家電，普通民用設備，智能家居，藍牙音響，儀器設備，無線網絡等領域。CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ.

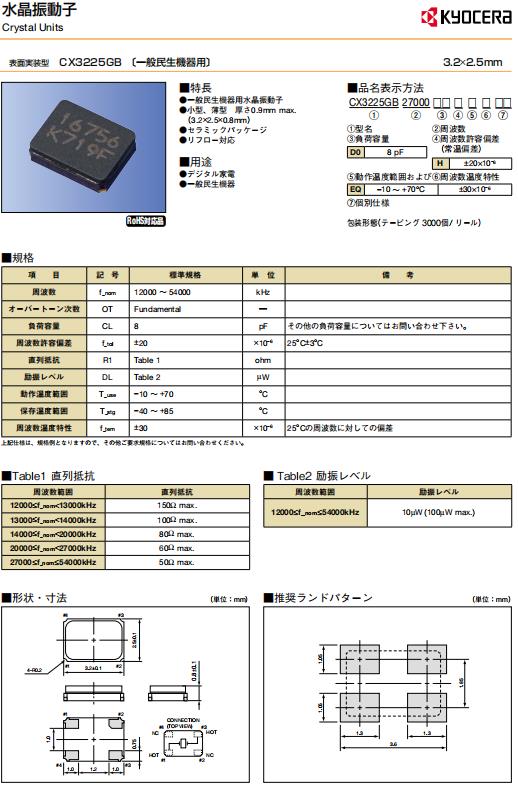

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ 參數表

項目

記號

標準規格

単位

備考

頻率

f_nom

12000 ~ 54000

kHz

過音階

Fundamental

―

負荷容量

關于其他的負荷容量請咨詢。

頻率容許偏差

f_tol

±20

× 10−6

25°C±3°C

直列抵抗

Table 1

ohm

激勵水平

Table 2

工作溫度范圍

T_use

− 10 ~ +70

°C

保持穩定范圍

T_stg

−40 ~ +85

°C

頻率溫度特性

f_tem

±30

× 10−6

相對于25°C頻率的偏差

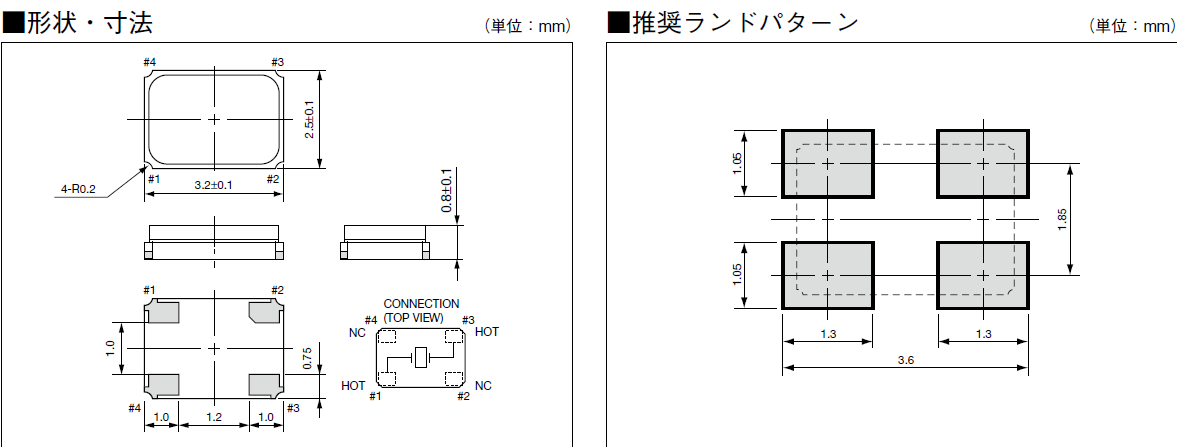

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ 尺寸圖

CX3225GB24576D0HPQCC晶振特征：

普通民用機器水晶振蕩器

●體積小，超薄厚度0.9mm max。

(3.2×2.5×0.8毫米)

●陶瓷封裝

●應對回流

更多相關京瓷晶振型號

原廠編碼	廠家	型號	系列	頻率	工作溫度
CX3225GB12000H0KPSC1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX3225GB16000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX3225GB24000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX3225GB12000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX3225GB16000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX3225GB49152P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	49.152MHz	-40°C ~ 85°C
CX3225GB18432D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-10°C ~ 70°C
CX3225GB20000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX3225GB13560P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 85°C
CX3225GB19200P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX3225GB22579P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	22.5792MHz	-40°C ~ 85°C
CX3225GB27000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
CX3225GB14745D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-40°C ~ 85°C
CX3225GB12000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX3225GB24000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24MHz	-40°C ~ 85°C
CX3225GB12000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12MHz	-10°C ~ 70°C
CX3225GB27000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX3225GB25000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	25MHz	-10°C ~ 70°C
CX3225GB25000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX3225GB33333P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-40°C ~ 85°C
CX3225GB24576D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX3225GB14745P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-40°C ~ 85°C
CX3225GB36000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	36MHz	-40°C ~ 85°C
CX3225GB12288P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12.288MHz	-40°C ~ 85°C
CX3225GB38400D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-10°C ~ 70°C
CX3225GB14745D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX3225GB54000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-10°C ~ 70°C
CX3225GB24576D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX3225GB30000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	30MHz	-10°C ~ 70°C
CX3225GB13560D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX3225GB19200D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX3225GB33333D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-10°C ~ 70°C
CX3225GB40000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	40MHz	-10°C ~ 70°C
CX3225GB20000D0HEQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	20MHz	-10°C ~ 70°C
CX3225GB38400P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX3225GB54000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-40°C ~ 85°C
CX3225GB14318D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.31818MHz	-40°C ~ 85°C
CX3225GB16384P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	16.384MHz	-40°C ~ 85°C
CX3225GB40000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	40MHz	-40°C ~ 85°C
CX3225GB54000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-40°C ~ 85°C
CX3225GB38400D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX3225GB18432P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-40°C ~ 85°C
CX3225GB19200D0HPQCC	AVX Corp/Kyocera Corp	3225mm貼片晶振	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX3225GB18432D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-40°C ~ 85°C
CX3225GB27000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
CX3225GB48000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX3225GB32000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	32MHz	-40°C ~ 85°C
CX3225GB30000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX3225GB33333D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-40°C ~ 85°C
CX3225GB25000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX3225GB14318P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.31818MHz	-40°C ~ 85°C
CX3225GB10000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX3225GB20000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX3225GB10000P0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX3225GB48000D0HPQCC	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
