- 編號：58350526
- 頻率：16MHz
- 尺寸：2520mm
歐美?？怂咕д?領先同行的航空航天晶振,FC2BACBEI16.0-T3晶振
歐美福克斯晶振,領先同行的航空航天晶振,FC2BACBEI16.0-T3晶振，美國?？怂咕д窆?，FOX晶體內部石英晶片均采用了全自動壓電石英晶片清洗技術，采用高壓噴淋清洗，兆聲振動的原理，一個全自動、清洗過程由PLC控制，由...
.jpg)
歐美?？怂咕д?領先同行的航空航天晶振,FC2BACBEI16.0-T3晶振，美國?？怂咕д?/a>公司，FOX晶體內部石英晶片均采用了全自動壓電石英晶片清洗技術，采用高壓噴淋清洗，兆聲振動的原理，一個全自動、清洗過程由PLC控制，由傳輸裝置、噴淋清洗段、噴淋漂洗段、風力吹水段等， 操作自動化程度高，除上下工件需要人工外，其余全部由設備自動完成。根據需要，對速度，溫度，時間等參數進行調整，使之最大限度的滿足工藝需要。能最大限度除去晶片污染物，并防止人工污染。石英晶振，貼片晶振，無源晶振，高精密石英晶振，進口晶振，歐美晶振，FOX晶振，高品質晶振，低損耗晶振，歐美晶振，遙遙領先晶振，室外6G基站晶振，汽車電子晶振，汽車輔助駕駛晶振，高精度晶振，
.gif)

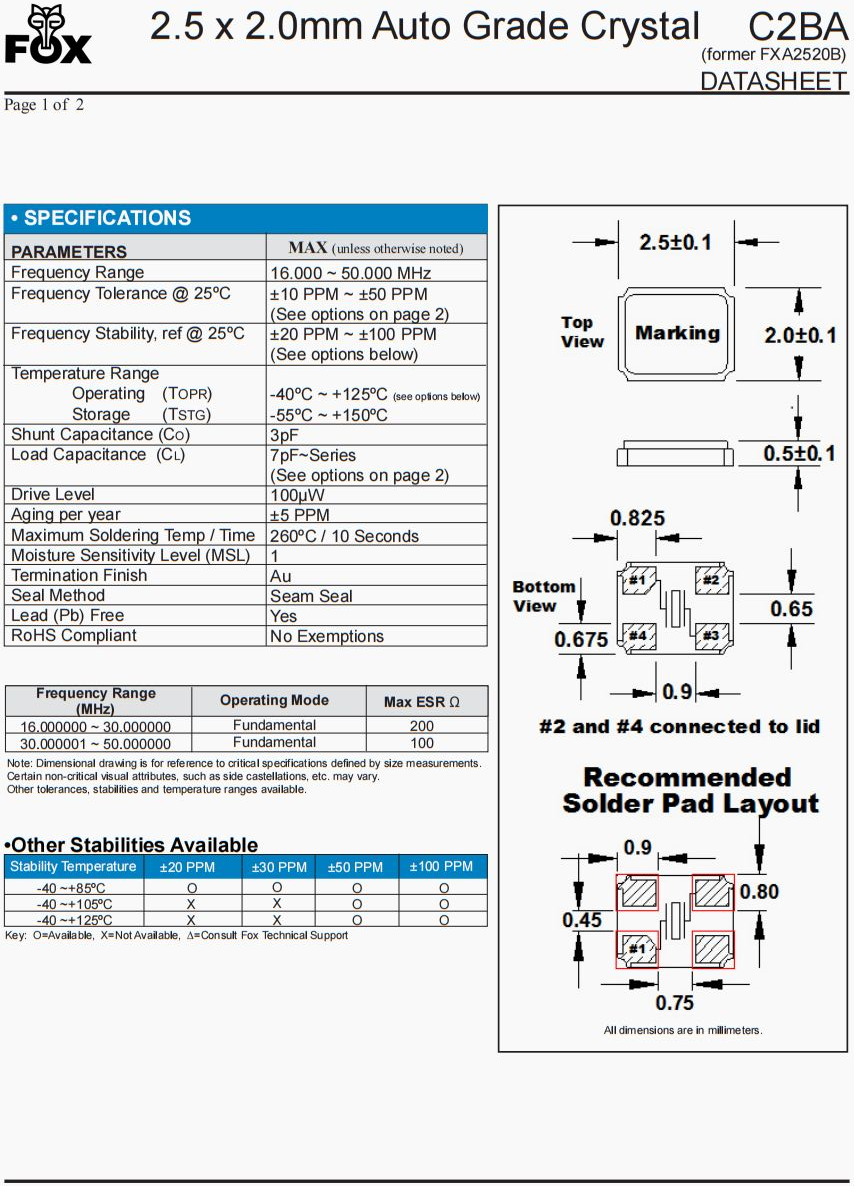

歐美福克斯晶振,領先同行的航空航天晶振,FC2BACBEI16.0-T3晶振
| 參數 | MAX (unless otherwise noted) |
| 頻率范圍 | 16.000 ~ 50.000 MHz |
| 頻率容差 | ±10 PPM ~ ±50 PPM(See options on page 2) |
| 頻率穩定度 | ±20 PPM ~ ±100 PPM(See options below) |
| 工作溫度范圍 | -40ºC ~ +125ºC (see options below) |
| 儲存溫度范圍 | -55ºC ~ +150ºC |
| 分流電容 | 3pF |
| 負載電容 | 7pF~Series(See options on page 2) |
| 驅動電平 | 100µW |
| 老化 | ±5 PPM |
| 最大焊接溫度/時間 | 260ºC / 10 Seconds |
| 濕度敏感性水平 | 1 |
| 終止完成 | Au |
| 密封方式 | Seam Seal |
| 無鉛 | Yes |
| 符合RoHS | No Exemptions |
.gif)
歐美?？怂咕д?領先同行的航空航天晶振,FC2BACBEI16.0-T3晶振
| FOX原廠編碼 | 生產商 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 |
| FC4SDCBMF10.0-T1 | Fox晶振 | HC49SDLF | 10 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF8.0-T1 | Fox晶振 | HC49SDLF | 8 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF3.6864-T1 | Fox晶振 | HC49SDLF | 3.6864 MHz | ±50ppm | ±30ppm |
| FKFSREIHM0.032768-T3 | Fox晶振 | FSRLF | 32.768 kHz | - | ±20ppm |
| FC4STCBMF20.0 | Fox晶振 | HC49SLF | 20 MHz | ±50ppm | ±30ppm |
| FK135EIHM0.032768-T3 | Fox晶振 | K135 | 32.768 kHz | - | ±20ppm |
| FC5BQCCMC12.0-T1 | Fox晶振 | C5BQ | 12 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM25.0-T1 | Fox晶振 | C5BQ | 25 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM12.0-T1 | Fox晶振 | C5BQ | 12 MHz | ±50ppm | ±30ppm |
| FC7BSCCMM8.0-T1 | Fox晶振 | C7BS | 8 MHz | ±30ppm | ±30ppm |
| FC7BSCCMM7.3728-T1 | Fox晶振 | C7BS | 7.3728 MHz | ±30ppm | ±30ppm |
| FKFSXEIHM0.032768-T3 | Fox晶振 | FSXLF | 32.768 kHz | - | ±20ppm |
| FKFSREIBM0.032768-T3 | Fox晶振 | FSRLF | 32.768 kHz | - | ±20ppm |
| FC8AQCCMC3.6864-T1 | Fox晶振 | FC8AQ | 3.6864 MHz | ±30ppm | ±30ppm |
| FC8AQCCMC4.0-T1 | Fox晶振 | FC8AQ | 4 MHz | ±30ppm | ±30ppm |
| FC4SDCBMF11.0592-T1 | Fox晶振 | HC49SDLF | 11.0592 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF25.0-T1 | Fox晶振 | HC49SDLF | 25 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF16.0-T1 | Fox晶振 | HC49SDLF | 16 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF12.0-T1 | Fox晶振 | HC49SDLF | 12 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF24.0-T1 | Fox晶振 | HC49SDLF | 24 MHz | ±50ppm | ±30ppm |
| FC4SDCBMM25.0-T1 | Fox晶振 | HC49SDLF | 25 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF14.7456-T1 | Fox晶振 | HC49SDLF | 14.7456 MHz | ±50ppm | ±30ppm |
| FC4SDCBMM8.0-T1 | Fox晶振 | HC49SDLF | 8 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF7.3728-T1 | Fox晶振 | HC49SDLF | 7.3728 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF6.0-T1 | Fox晶振 | HC49SDLF | 6 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF4.0-T1 | Fox晶振 | HC49SDLF | 4 MHz | ±50ppm | ±30ppm |
| FC3BQBBME12.0-T3 | Fox晶振 | FQ3225B | 12 MHz | ±50ppm | ±50ppm |
| FC3BQBBMM25.0-T3 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm |
| FKT38EIHD0.032768 | Fox晶振 | NC38LF | 32.768 kHz | - | ±20ppm |
| FC4STCBMF10.0 | Fox晶振 | HC49SLF | 10 MHz | ±50ppm | ±30ppm |
| FC4STCBMF25.0 | Fox晶振 | HC49SLF | 25 MHz | ±50ppm | ±30ppm |
| FC4STCBMF16.0 | Fox晶振 | HC49SLF | 16 MHz | ±50ppm | ±30ppm |
| FC4STCBMF12.0 | Fox晶振 | HC49SLF | 12 MHz | ±50ppm | ±30ppm |
| FC4STCBMF11.0592 | Fox晶振 | HC49SLF | 11.0592 MHz | ±50ppm | ±30ppm |
| FC4STCBMF8.0 | Fox晶振 | HC49SLF | 8 MHz | ±50ppm | ±30ppm |
| FC4STCBMF7.3728 | Fox晶振 | HC49SLF | 7.3728 MHz | ±50ppm | ±30ppm |
| FC4STCBLF3.579545 | Fox晶振 | HC49SLF | 3.579545 MHz | ±50ppm | ±30ppm |
| FC4STCBMF4.0 | Fox晶振 | HC49SLF | 4 MHz | ±50ppm | ±30ppm |
| FC4STCBMF3.6864 | Fox晶振 | HC49SLF | 3.6864 MHz | ±50ppm | ±30ppm |
| FKT26EIHD0.032768 | Fox晶振 | NC26LF | 32.768 kHz | - | ±20ppm |
| FKT38EIHQ0.032768 | Fox晶振 | NC38LF | 32.768 kHz | - | ±20ppm |
| FC5BQCCMC25.0-T1 | Fox晶振 | C5BQ | 25 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC24.0-T1 | Fox晶振 | C5BQ | 24 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC20.0-T1 | Fox晶振 | C5BQ | 20 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC16.0-T1 | Fox晶振 | C5BQ | 16 MHz | ±30ppm | ±30ppm |
| FC7BSCCMC8.0-T1 | Fox晶振 | C7BS | 8 MHz | ±30ppm | ±30ppm |
| FC7BSCCMM6.0-T1 | Fox晶振 | C7BS | 6 MHz | ±30ppm | ±30ppm |
| FC7BSCCMC7.3728-T1 | Fox晶振 | C7BS | 7.3728 MHz | ±30ppm | ±30ppm |
| FC8AQCCMC6.0-T1 | Fox晶振 | FC8AQ | 6 MHz | ±30ppm | ±30ppm |
| FC4SDCBMF12.288-T1 | Fox晶振 | HC49SDLF | 12.288 MHz | ±50ppm | ±30ppm |
| FC4SDCBMM16.0-T1 | Fox晶振 | HC49SDLF | 16 MHz | ±50ppm | ±30ppm |
| FC4SDCBMF18.432-T1 | Fox晶振 | HC49SDLF | 18.432 MHz | ±50ppm | ±30ppm |
| FC4SDCBLF3.579545-T1 | Fox晶振 | HC49SDLF | 3.579545 MHz | ±50ppm | ±30ppm |
| FC4SDCBMM4.0-T1 | Fox晶振 | HC49SDLF | 4 MHz | ±50ppm | ±30ppm |
| FC2BSBBMM16.0-T3 | Fox晶振 | FX252B | 16 MHz | ±50ppm | ±50ppm |
| FC4STCBMF18.432 | Fox晶振 | HC49SLF | 18.432 MHz | ±50ppm | ±30ppm |
| FC4STCBMF14.7456 | Fox晶振 | HC49SLF | 14.7456 MHz | ±50ppm | ±30ppm |
| FKT26EIHQ0.032768 | Fox晶振 | NC26LF | 32.768 kHz | - | ±20ppm |
